 Post subject: FREE DIY DAC
PostPosted: November 18th, 2018, 7:13 pm
Offline

Joined: July 17th, 2016, 6:24 am
Posts: 584
Last year I build AK4495 DAC from DIYinHK kit. It comes with DAC and two PS regulators, 3.3/5v and 12v. See the links below.

https://www.diyinhk.com/shop/audio-kits/70-classic-reference-78xx-power-supply-linear-regulator-33v-5v-12v.html
https://www.diyinhk.com/shop/audio-kits/74-768khz32bit-ak4495seq-dac-i2sdsd-input.html

I upgraded to AK4497 DAC, so dont need these anymore. This is my first experience soldering PCB mounts, so not the best job.

To make it work, you would need a dual opamp and a XMOS module, and ps transformers. I was using the Isolated XMOS linked below. They have a cheaper model too.

https://www.diyinhk.com/shop/audio-kits/116-isolated-xmos-768khz-dxd-dsd512dsd1024-high-quality-usb-to-i2sdsd-pcb.html

Attachment:

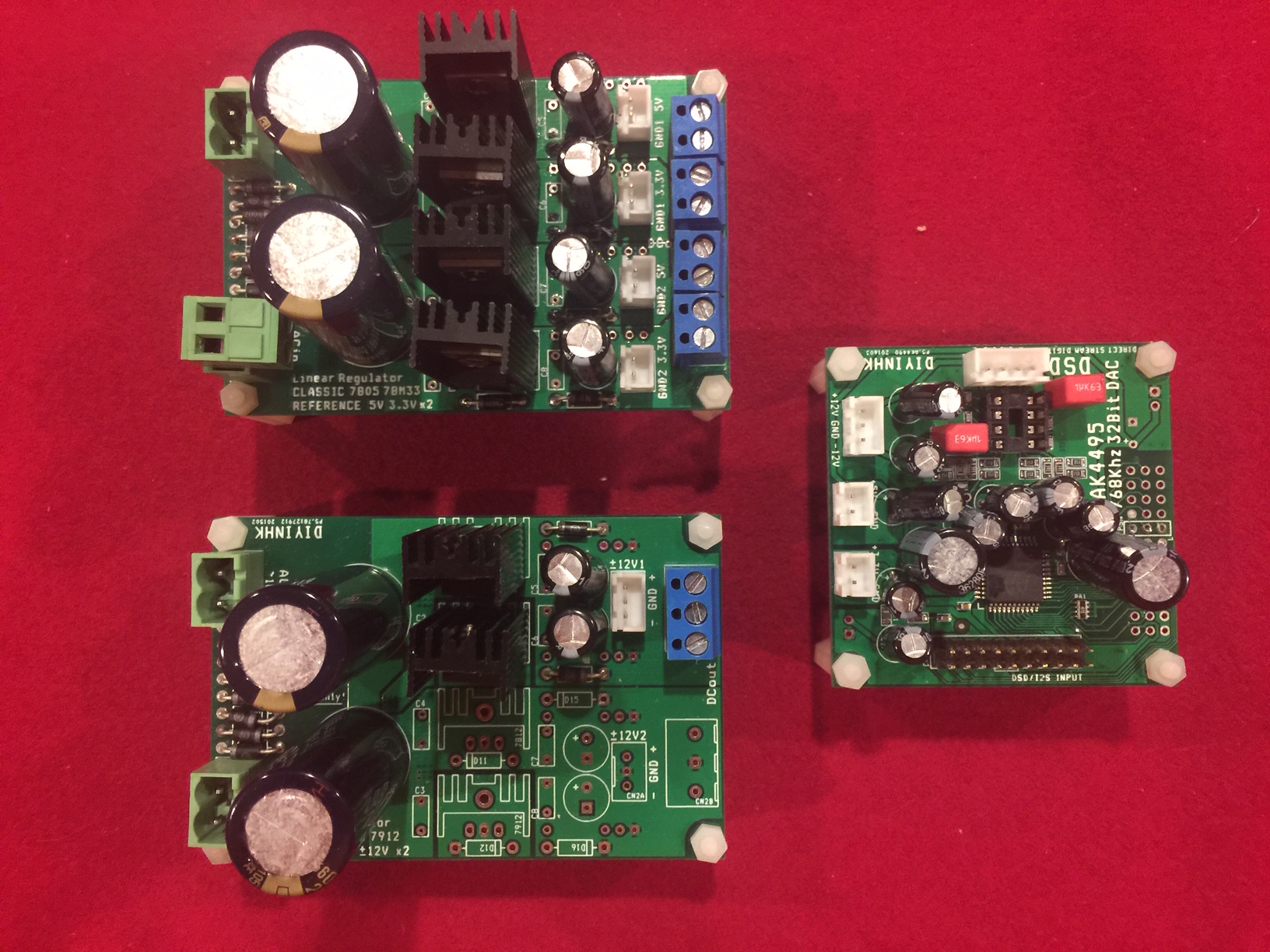

IMG_3357.JPG [ 695.67 KiB | Viewed 818 times ]

_________________
Shashi


Top
 Profile

 Post subject: Re: FREE DIY DAC
PostPosted: December 18th, 2018, 12:43 pm
Offline

Joined: July 17th, 2016, 6:24 am
Posts: 584
DAC is claimed.
