 Post subject: CNC Speaker Design
PostPosted: December 12th, 2017, 6:22 pm
Offline

Joined: October 21st, 2013, 6:53 pm
Posts: 263
Hi All,

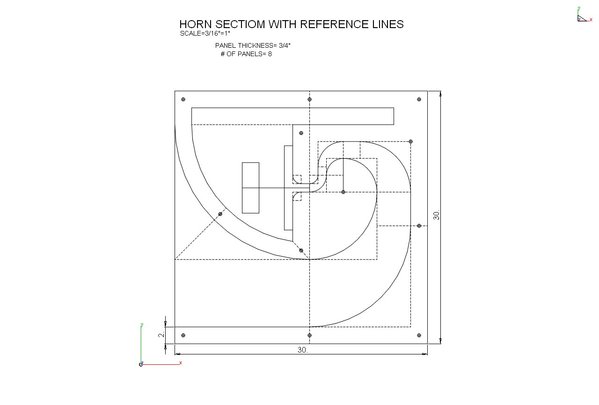

I have project I'm trying to realize. It's a horn built out of multiple sections of 3/4" plywood, each cut with a horn shaped profile in them.

Attachment:
Phihorn.jpg [ 64.36 KiB | Viewed 11502 times ]


The most efficient way to produce all the parts is with CNC.

I'm having a difficult time locating someone that someone that can do this work at a reasonable price.

Workpiece is 30" x 30"

Does anybody have connections with someone with CNC capability, that will entertain an "experimental" type project?


Thanks,

Chris


Top
 Profile

 Post subject: Re: CNC Speaker Design
PostPosted: December 12th, 2017, 6:42 pm
Offline

Joined: July 8th, 2016, 4:34 pm
Posts: 261
Call the woodworkers club and ask how much it would cost. They have a very large cnc router table.

http://woodworkersclub.com/


Top
 Profile

 Post subject: Re: CNC Speaker Design
PostPosted: December 12th, 2017, 7:04 pm
Offline

Joined: October 21st, 2013, 6:53 pm
Posts: 263
brombo wrote:
Call the woodworkers club and ask how much it would cost. They have a very large cnc router table.

http://woodworkersclub.com/


Thanks, That looks promising!


Top
 Profile

 Post subject: Re: CNC Speaker Design
PostPosted: December 12th, 2017, 8:29 pm
Offline

Joined: July 17th, 2016, 6:24 am
Posts: 584
brombo wrote:
Call the woodworkers club and ask how much it would cost. They have a very large cnc router table.

http://woodworkersclub.com/


I was told there are places in Reston and Leesburg which allow DIYers at a reasonable cost. Dont know the details yet.

_________________
Shashi


Top
 Profile

 Post subject: Re: CNC Speaker Design
PostPosted: December 12th, 2017, 10:26 pm
Offline

Joined: October 21st, 2013, 6:53 pm
Posts: 263
Cogito wrote:
brombo wrote:
Call the woodworkers club and ask how much it would cost. They have a very large cnc router table.

http://woodworkersclub.com/


I was told there are places in Reston and Leesburg which allow DIYers at a reasonable cost. Dont know the details yet.


Thanks Sashi, let me know if you learn anything about that in your class.

Also, would any of the other horn guys have any comments about whether there are any glaringly wrong problems with my horn profile?

The horn will accomodate a 10" woofer, and it will have a slotted trhoat about 1" by 7.5".

I'm assuming it will be a relatively long throw horn for pro audio use. I'm going to test it in my listening room, but I don't really have any intentions of keeping it there.


Top
 Profile

 Post subject: Re: CNC Speaker Design
PostPosted: December 13th, 2017, 10:14 am
Offline

Joined: July 17th, 2016, 6:24 am
Posts: 584
chris1973 wrote:
Hi All,
I have project I'm trying to realize. It's a horn built out of multiple sections of 3/4" plywood, each cut with a horn shaped profile in them.

Chris


why are you looking at horns anyways? They play loud for auditoriums. :-)

_________________
Shashi


Top
 Profile

 Post subject: Re: CNC Speaker Design
PostPosted: December 13th, 2017, 10:30 am
Offline
Site Admin
User avatar

Joined: February 28th, 2013, 10:38 am
Posts: 1062
If you use 8 3/4" panels, it'll only be 6" wide, how does that work with a 10" driver or a 7.5" slot?

Roscoe


Top
 Profile

 Post subject: Re: CNC Speaker Design
PostPosted: December 13th, 2017, 12:01 pm
Offline

Joined: January 15th, 2015, 7:19 am
Posts: 813
Location: Baltimore MD
Personally I would use a jig saw for a prototype before I would go to the expense of CNC.


Top
 Profile

 Post subject: Re: CNC Speaker Design
PostPosted: December 13th, 2017, 12:11 pm
Offline

Joined: July 8th, 2016, 4:34 pm
Posts: 261
Suggestion. Print out drawing full size (printer software can print out full size on multiple sheets of paper with alignment marking). Glue printout to high density fiberboard. Cut out and use for template with jigsaw (cut off line) and sand to line (bench top oscillating sander best for this). Use hand router with guides to cut actual pattern in wood. I have all the wood working tools to loan to you if you can to come to Silver Spring to pick them up.


Top
 Profile

 Post subject: Re: CNC Speaker Design
PostPosted: December 13th, 2017, 12:31 pm
Offline

Joined: July 17th, 2016, 6:24 am
Posts: 584
brombo wrote:
Suggestion. Print out drawing full size (printer software can print out full size on multiple sheets of paper with alignment marking). Glue printout to high density fiberboard. Cut out and use for template with jigsaw (cut off line) and sand to line (bench top oscillating sander best for this). Use hand router with guides to cut actual pattern in wood. I have all the wood working tools to loan to you if you can to come to Silver Spring to pick them up.


Depends.
Only one cross sectional view is shown . The horn flare could be expanding on all four sides which makes it extremely difficult.

_________________
Shashi


Top
 Profile
