 Post subject: LM1875 Chip Amps...
PostPosted: September 10th, 2016, 12:07 pm
Offline
Site Admin
User avatar

Joined: February 28th, 2013, 10:38 am
Posts: 1091
Many have heard these at my place or at CAF in '15. Here's the schematic and a few pictures (with the smaller 24VCT transformers I used to use). If you want to build a stereo version, you'll need to substitute a 36VCT/3A transformer....

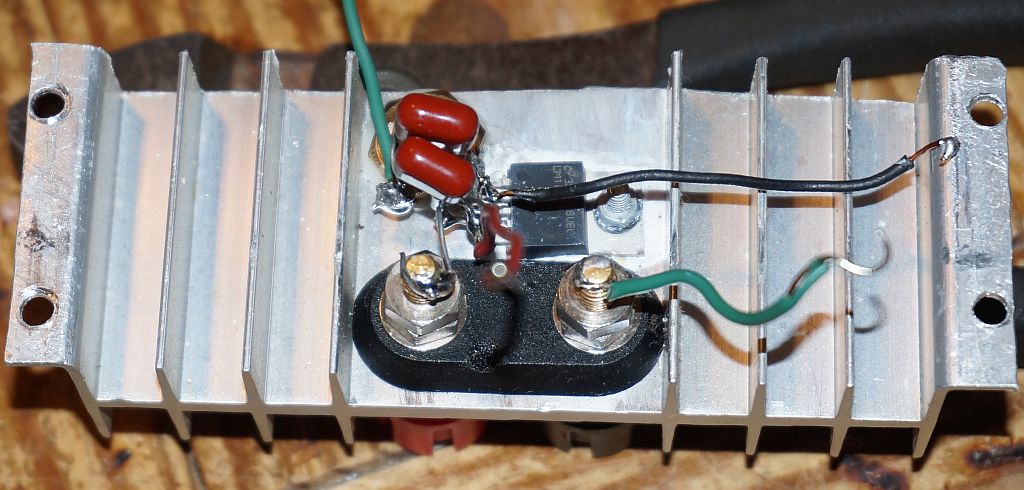

Everything except the power supply:

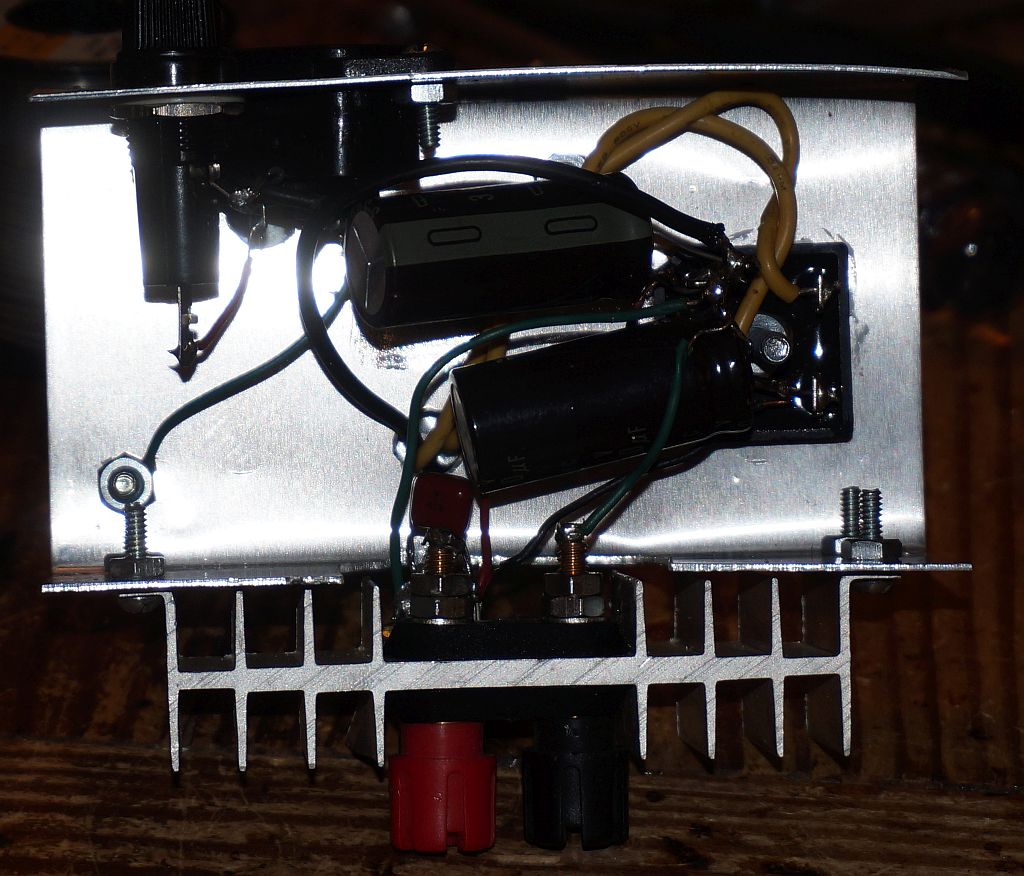

Interior view:

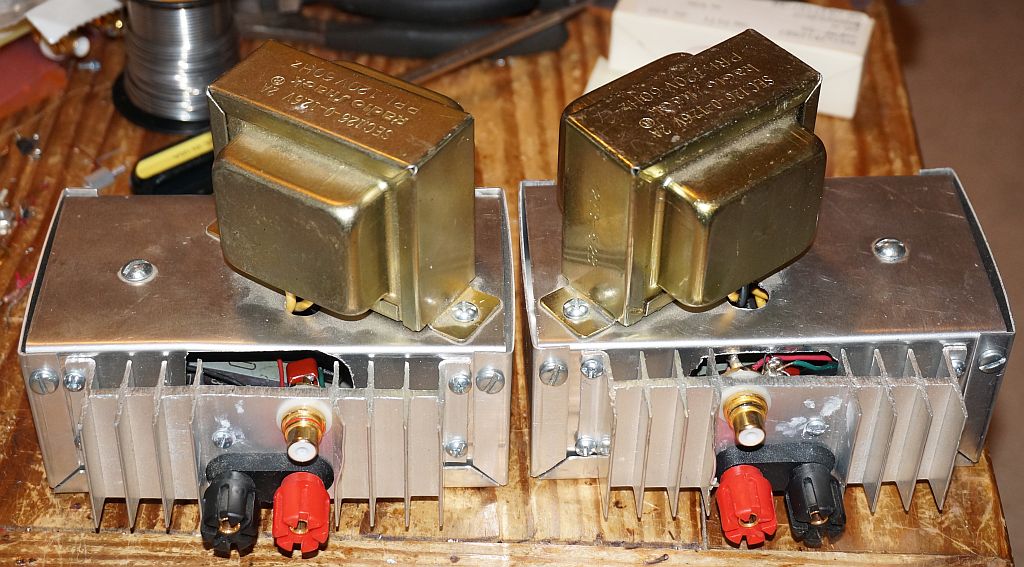

External, they're mirror images:

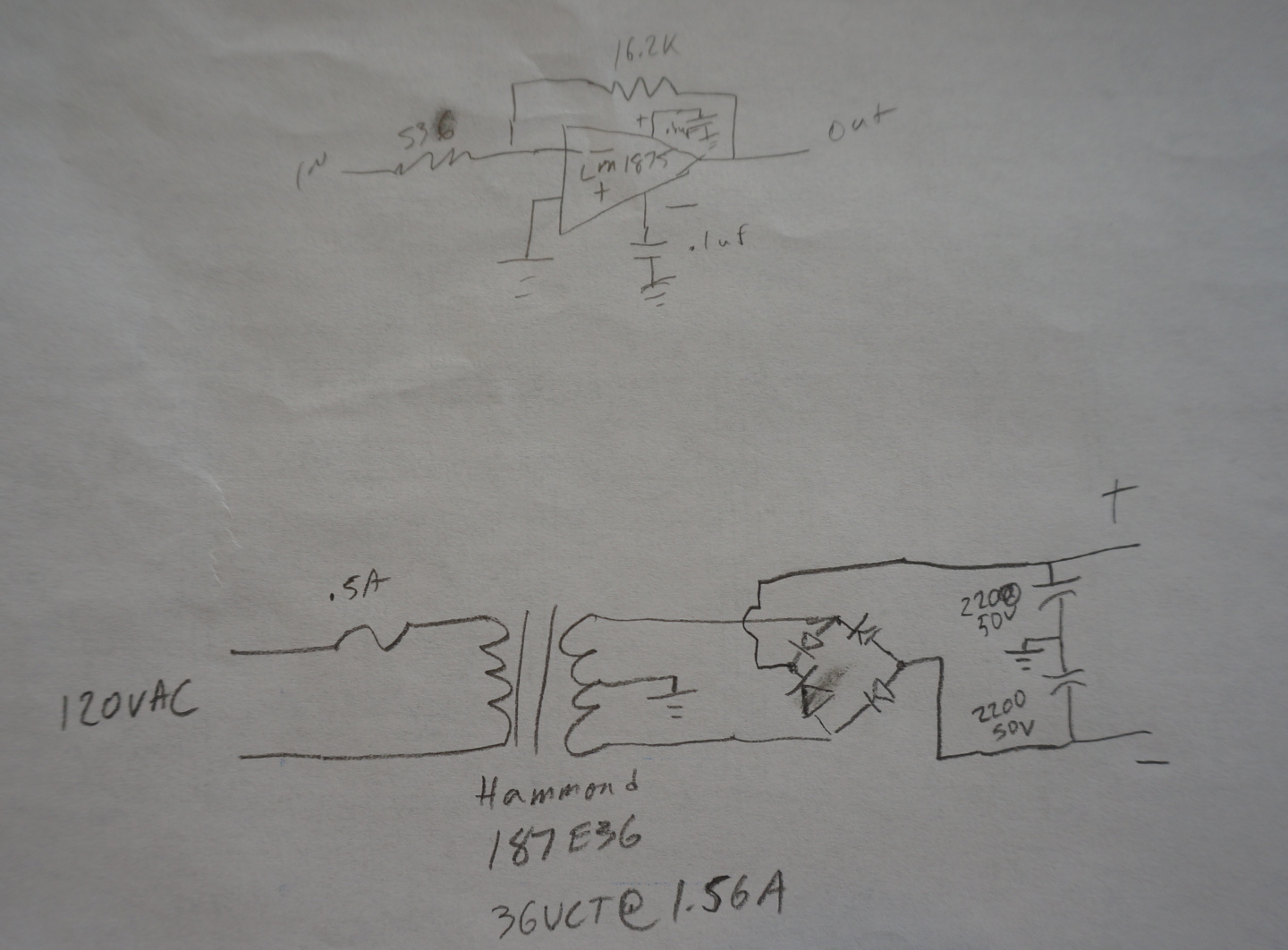

Schematic:

Roscoe


Top
 Profile

 Post subject: Re: LM1875 Chip Amps...
PostPosted: September 14th, 2016, 11:07 am
Offline

Joined: March 12th, 2013, 11:12 am
Posts: 486
Why the 1875?


Top
 Profile

 Post subject: Re: LM1875 Chip Amps...
PostPosted: September 14th, 2016, 11:14 am
Offline
Site Admin
User avatar

Joined: February 28th, 2013, 10:38 am
Posts: 1091
Best sounding one I tried....

Roscoe


Top
 Profile

 Post subject: Re: LM1875 Chip Amps...
PostPosted: September 14th, 2016, 11:25 am
Offline
User avatar

Joined: January 13th, 2016, 9:14 pm
Posts: 513
If someone needs some LM1875T's let me know.

Probably have 10 new in a tube from Digikey. Should be latest production.


Top
 Profile

 Post subject: Re: LM1875 Chip Amps...
PostPosted: September 14th, 2016, 11:26 am
Offline

Joined: January 15th, 2015, 7:19 am
Posts: 841
Location: Baltimore MD
I already ordered some and hopefully they are on the way


Top
 Profile

 Post subject: Re: LM1875 Chip Amps...
PostPosted: September 14th, 2016, 11:29 am
Offline

Joined: January 15th, 2015, 7:19 am
Posts: 841
Location: Baltimore MD
heatsinks will be a problem though
going through parts shelf, I have most everything else


Top
 Profile

 Post subject: Re: LM1875 Chip Amps...
PostPosted: September 14th, 2016, 11:32 am
Offline
Site Admin
User avatar

Joined: February 28th, 2013, 10:38 am
Posts: 1091
You don't need much, an old CPU cooler would probably be enough.... I've never noticed mine being more than barley warmer than room temperature... The 47labs GainCard just used the chassis, without any real heat sinks...

Roscoe


Top
 Profile

 Post subject: Re: LM1875 Chip Amps...
PostPosted: September 14th, 2016, 11:46 am
Offline

Joined: March 12th, 2013, 11:12 am
Posts: 486
Are both of the caps on the chip 0.1uF? Did you reverse signal connection to get polarity corrected?


Top
 Profile

 Post subject: Re: LM1875 Chip Amps...
PostPosted: September 14th, 2016, 11:51 am
Offline
Site Admin
User avatar

Joined: February 28th, 2013, 10:38 am
Posts: 1091
Yeah, both. Value here isn't critical, that's the local PS bypass right at the chip pins. When I originally built these amps, they were non-inverting, so the output is inverting, I just flip the output connections. Feel free to hook up your output to the black binding post & the red one to ground, then you won't have to think about it when they got hooked up...

Roscoe


Top
 Profile

 Post subject: Re: LM1875 Chip Amps...
PostPosted: September 28th, 2016, 3:07 pm
Offline

Joined: January 15th, 2015, 7:19 am
Posts: 841
Location: Baltimore MD
maybe a noob question but....
are the chips insulated from heatsink/ground. I see the thermo paste but curious it there is a piece of mica in there also
